Editable span showed as input field in PDF

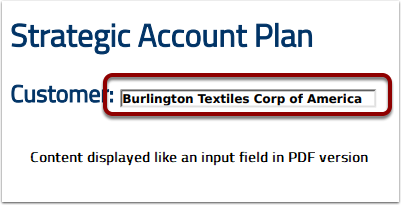

For templates created before the 2018/01, when using the editable span option, the field is shown as an input field in the PDF documents. Follow the instruction below to solve the issue.

Problem


Solution

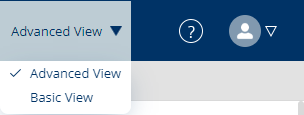

In the top right corner of the Template Builder, switch to Advanced View


In the Home screen, click on Main Flow


Select the Main tab

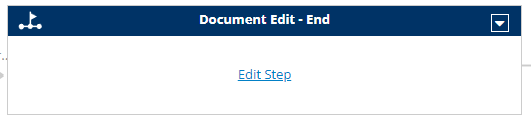

Scroll to "Document Edit - End" step, click Edit Step


Click on the composeContent command

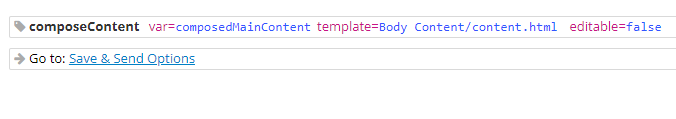

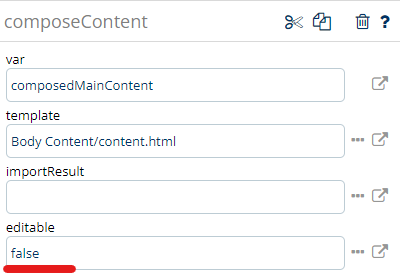

In the right pane, type false to the editable attribute

Click Main in the top bar to go back

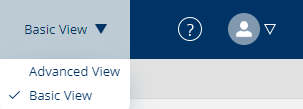

In the top right corner, switch back to Basic View



Now, the editable span in PDF document should carry the same style as the template.

In case you don't want the document to be editable anymore, disable the Enable Editing in your span element.
