How to Add Dynamic Images to HTML Content
This article includes content:
What is dynamic image?
Add images those are linked with record using URL and custom field
Add images those are related to Salesforce's record
1. What is dynamic image?
Dynamic images may include product images, customer logos, or any images associated with the record. These image files are stored either in Salesforce or on another server, then linked to the Salesforce record.

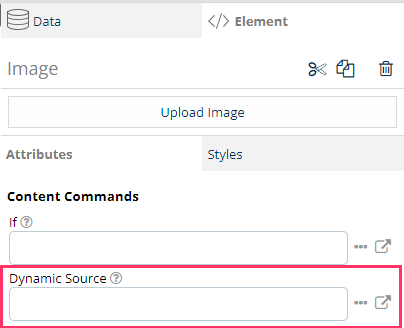

To map dynamic images, add content to the Dynamic Source in the Image Attributes.
![image-20240126-072147.png](../__attachments/159940914/image-20240126-072147.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)

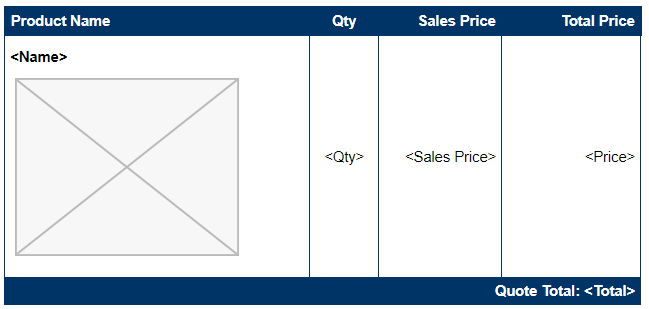

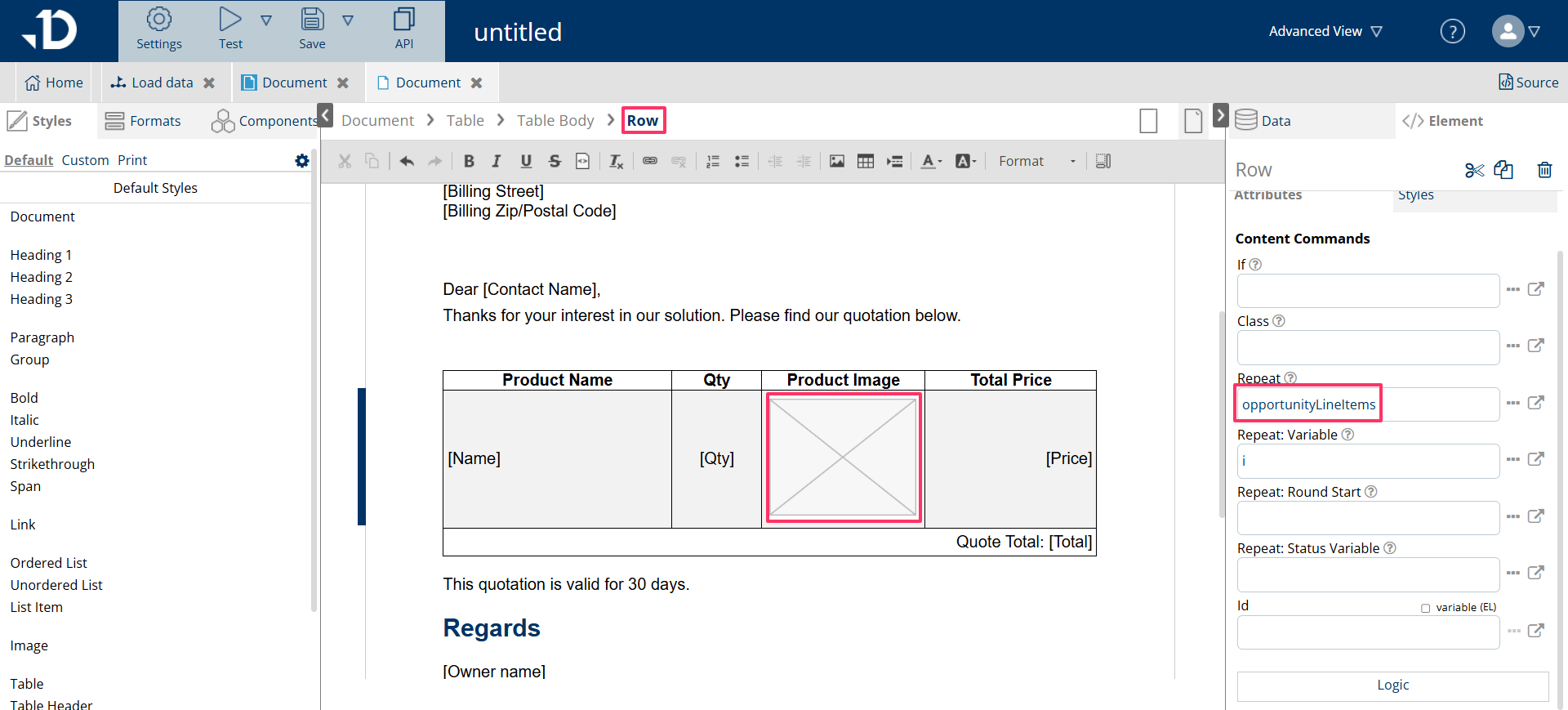

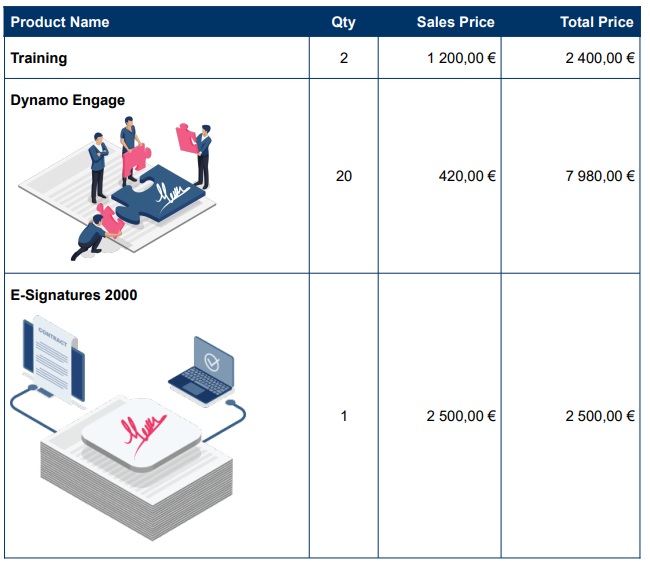

Examples: How the Product Table looks like in the template and in the document
![image-20240126-072402.png](../__attachments/159940914/image-20240126-072402.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)
![image-20240126-072446.png](../__attachments/159940914/image-20240126-072446.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)
There are multiple methods to store and attach images to a record, with the two most common approaches being:
Images linked to the record via a URL in a custom field: The images are stored either in the Document tab or on another server. An admin can create a custom field in the record and copy the image URLs to that field.
Images uploaded and linked to a record in "Notes and Attachments": Salesforce no longer supports the Document tab in the Lightning UI. Since the Summer '17 Release, when you add a file to the record in "Notes & Attachments," the file is uploaded as Salesforce Files. Previously, the file was uploaded as Salesforce Files in the Lightning UI and as Attachments in the Classic UI.
Depending on how your Salesforce instance is configured to display images, follow the instructions below on how to map dynamic images to the Dynamic Source for each case.
2. Images are linked with record using URL and custom field
When there is a custom field in Salesforce, containing the image URL, to display the image in the document, you will map that field to the Dynamic Source

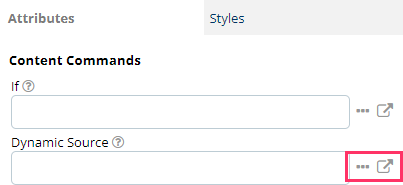

Click the "..." icon in the Dynamic Source to open the Salesforce Data Source
![image-20240126-072830.png](../__attachments/159940914/image-20240126-072830.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)
Select the custom fields in Salesforce
Select Set Attribute
![image-20240109-091658.png](../__attachments/159940914/image-20240109-091658.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)
Note:
The value in the custom field must be an image URL. If the image is saved in Document tab in Salesforce, the URL should be something like:
![image-20240109-091720.png](../__attachments/159940914/image-20240109-091720.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)
3. Images are related to the record as Salesforce Files
To display the dynamic images from Notes and Attachments in the document, you need to:
Query the image file IDs
Load and assign the ID to the Dynamic Source
3.1. Query the image file ID
Select the image placeholder. Click Logic in the right task pane.
![image-20240126-073008.png](../__attachments/159940914/image-20240126-073008.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)
In the Logic Editor. Type "query" to search for the query tag
![image-20240126-073035.png](../__attachments/159940914/image-20240126-073035.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)
Select the query
tag to add it to the Logic.

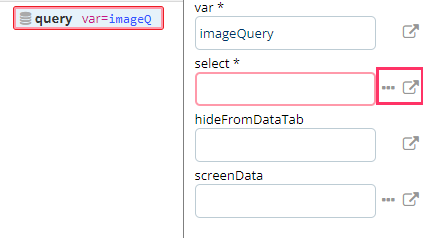

Give the name for the query in var attribute: "imageQuery"
![image-20240126-073202.png](../__attachments/159940914/image-20240126-073202.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)

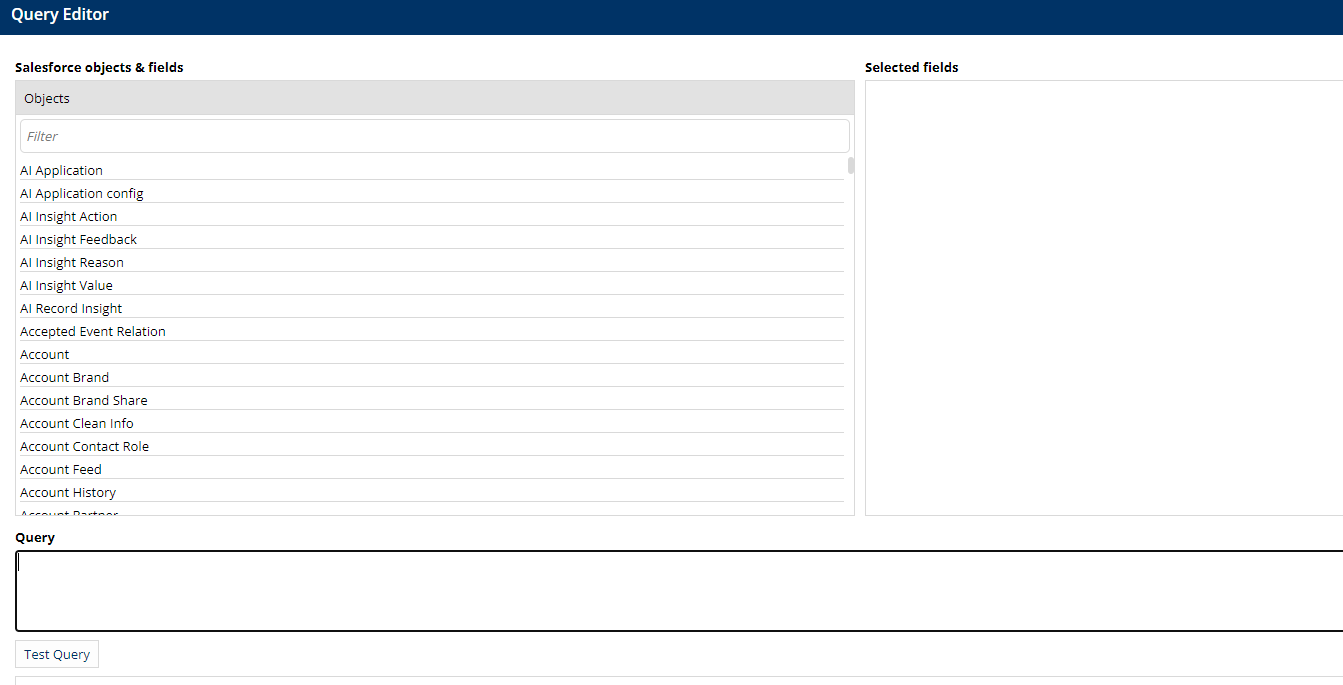

In Select attribute, click to the "..." icon to open Query Editor
![image-20240126-073242.png](../__attachments/159940914/image-20240126-073242.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)

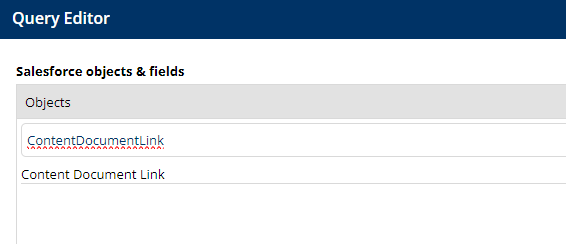

In the Objects, search for and select the Content Document Link
![image-20240126-073303.png](../__attachments/159940914/image-20240126-073303.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)

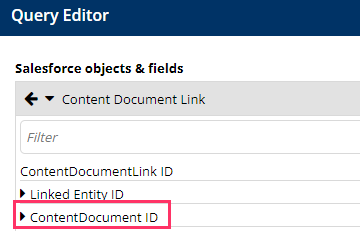

Select ContentDocument ID
![image-20240126-073342.png](../__attachments/159940914/image-20240126-073342.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)

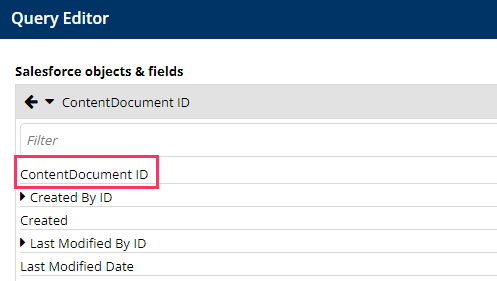

Select ContentDocument ID field
![image-20240126-073519.png](../__attachments/159940914/image-20240126-073519.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)
If you are querying images which are main record's attachment, complete the Query Component:
SELECT ContentDocument.Id FROM ContentDocumentLink Where LinkedEntity.Id = '${productID}'
![image-20240126-073602.png](../__attachments/159940914/image-20240126-073602.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)
If you have more than one file in the "Notes & Attachments", you can filter the files by FileType
SELECT ContentDocument.Id, LinkedEntity.Id, ContentDocument.FileType FROM ContentDocumentLink Where LinkedEntity.Id = '${id}' AND ContentDocument.FileType = 'jpg/png'
Click OK
![image-20240126-073721.png](../__attachments/159940914/image-20240126-073721.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)
Notes:
You can use all the SOQL Syntax in the Query Editor
If the images have been uploaded to Salesforce as Attachment, query the file from Attachment object and use the
WHERE
component as how you have set up your Salesforce
3.2. Load the image file

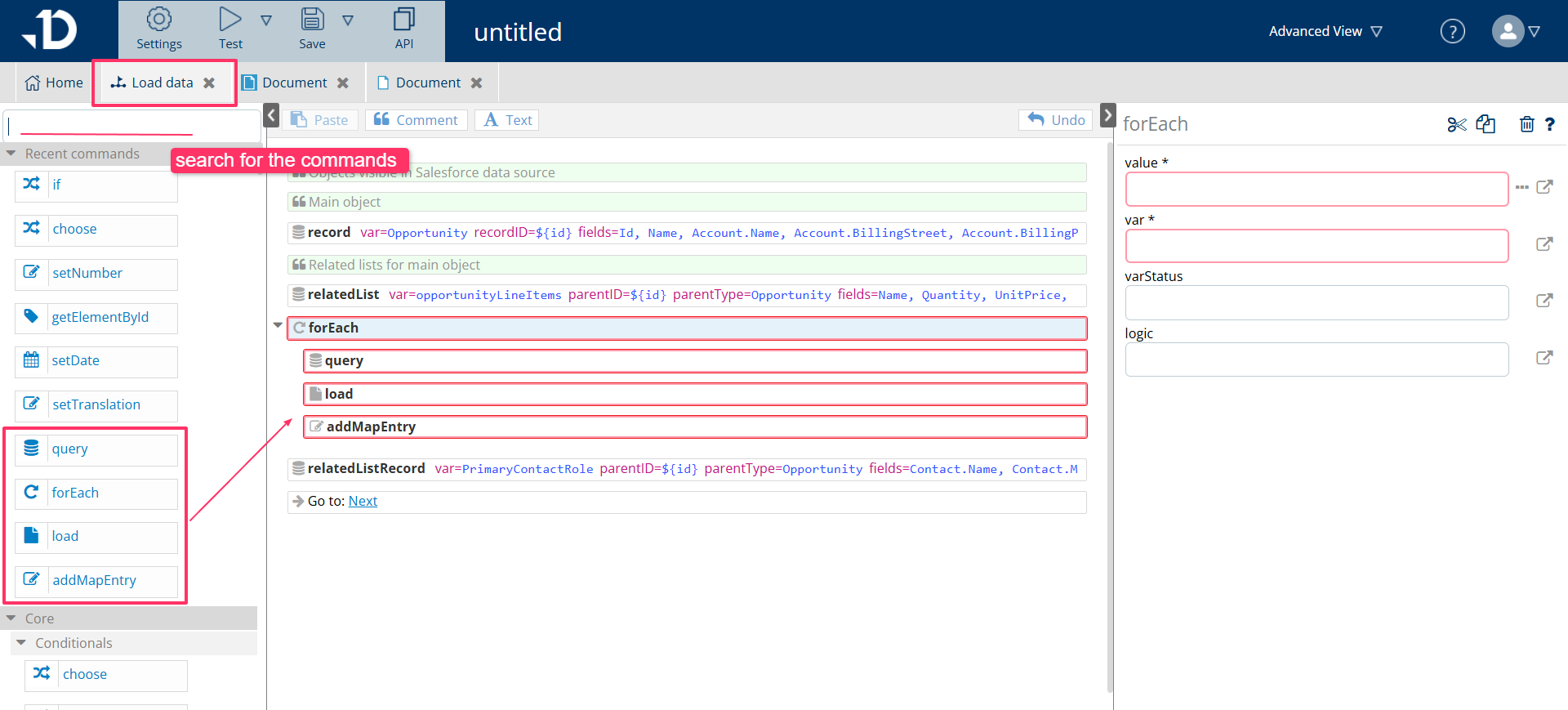

In the Logic Editor, search for the load tag.
Drag and drop the tag to the Logic, after the query
![image-20240126-074429.png](../__attachments/159940914/image-20240126-074429.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)

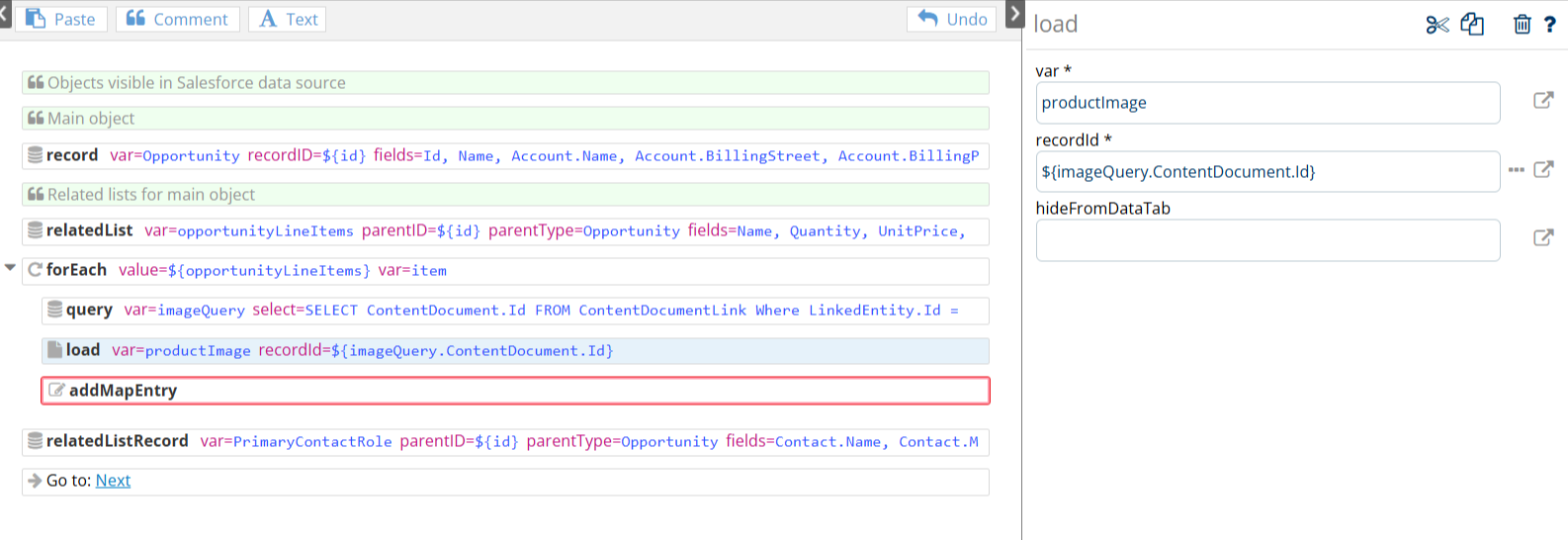

Give a variable name for the load tag in the var attribute: "imageID"
In recordID attribute, give the value: ${imageQuery.ContentDocument.Id}
![image-20240126-074620.png](../__attachments/159940914/image-20240126-074620.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)
3.3. Assign the image ID to Dynamic Source

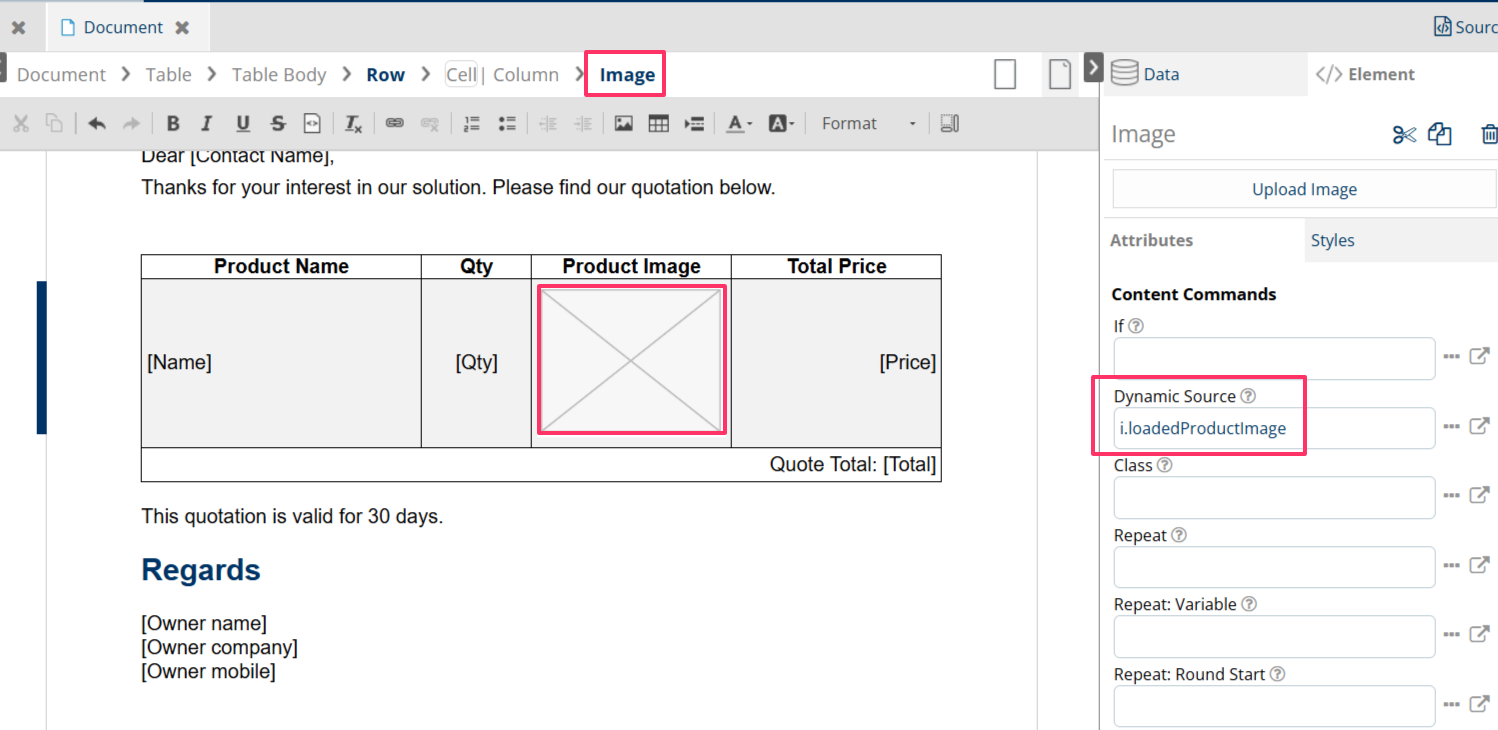

In the template, select the image placeholder
In Dynamic Source attribute, type in the variable name of the load
tag "imageID"
![image-20240126-074727.png](../__attachments/159940914/image-20240126-074727.png?inst-v=5205e5d1-dc16-46d7-af02-1258d99cc136)
