set

Sets a variable of the defined name and value into the variable context, overwriting any existing variable with the same name.

If placed as a child of a looping command or any other command that creates a local variable context, set has the special capability of being able to set a new value for an already existing variable in a parent variable context. The behavior of set in a local variable context in different conditions is as follows:

  • The local context does not have a variable with the name of set's var, but a parent context does. In this case set sets a new value for the parent context variable.

  • The local context has a variable with the name of set's var. In this case set's sets a new value for this local context variable, regardless of the parent contexts' variables.

  • The local context does not have a variable with the name of set's var, and neither does any of the parent contexts. In this case set creates a new local context variable.

Attributes

var

Required

Value type

EL-evaluated

Yes

String

No

Defines the name of the variable that will hold the value.

value

Required

Value type

EL-evaluated

No

Any

Yes

Whatever value this attribute's expression resolves into is set into the variable named with var.

If not defined or if the value expression resolves into null, no variable is set. Additionally, if the required attribute resolves into true, an error is produced.

required

Required

Value type

EL-evaluated

No

Boolean

No

If this attribute resolves into true, the value attribute resolving into null produces an error.

If not defined, value of false is used.

format

Required

Value type

EL-evaluated

No

String

Yes

If the resolved value of this attribute is the name of a Format, that Format is used format the resolved value of value into a String.

If both parser and format are defined, and the parsing process is successful, the value to be formatted is the result of the parsing.

If undefined or if the named Format cannot be found, no formatting is done to the value.

parser

Required

Value type

EL-evaluated

No

String

Yes

If the resolved value of this attribute is the name of a Parser, the resolved value of value is first converted into a String (if it isn't one already) and then parsed into another type of value by the Parser.

If both parser and format attributes are defined, the parsing process is done before the formatting.

If undefined or if the named Parser cannot be found, the value remains retains its original type.

Examples

The set command has a variety of uses despite its simple nature. One common use is to copy parameter values of the Flow into more conveniently named variables. This also makes these values available in contexts where the parameter map is not accessible.

CODE
<set var="id" value="${param.id}">

Besides duplicating values of existing variables, set can be used to create entirely new variables. Creating a String only requires the value attribute to not be an EL-expression.

CODE
<set var="defaultWeather" value="Somewhat gusty">

Boolean values can be set with EL-expressions ${true} and ${false}.

CODE
<set var="doesItWork" value="${true}">

The parser attribute can be used to convert existing variables into other types of variables. Converting a String representing a number into an actual Number, for example, allows the value to used in mathematical EL-expressions. Just be sure to use a number parser suited to parsing number strings of the given format.

CODE
<set var="numberStr" value="122,25"/><set var="actualNumber" value="${numberStr}" parser="numberParser"/>

This command's unique property to allow overwriting values of variables in parent variable contexts is also essential at times. Any other variable-producing command places its variable into its current context, which, for example, inside a forEach loop is the local context of its loop round that will terminate when the round is finished.

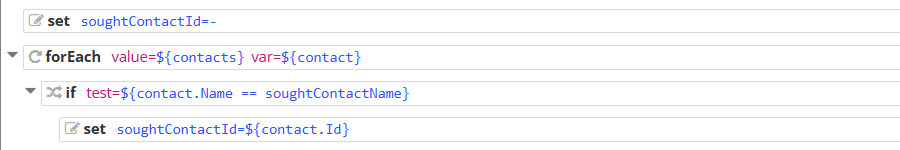

In this example, if the set preceding forEach didn't exist, the variable created by the set inside the forEach would just disappear when forEach is done. But with the first set creating the variable in the base variable context, the inner set sets its value there as well, allowing the value to exist past the loop.

CODE
<set var="soughtContactId" value="-"><forEach value="${contacts}" var="${contact}"><if test="${contact.Name == soughtContactName}"><set var="soughtContactId" value="${contact.Id}">
