The Excel output functionality requires additional licenses. Please contact support@documill.com to enable the licenses.
A child command for modifyWorkbook that sets a new value for a cell on the workbook. This will overwrite any existing value in the cell.
Parent commands
-
modifyWorkbook
Required. This parent defines the workbook that is modified.
Attributes
|
cell |
|
|
|---|---|---|
|
Required |
Value type |
EL-evaluated |
|
Yes |
String |
Yes |
|
Defines the cell that receives the new value. The resolved String is expected to specify the column and row, like "D44" for the cell in column D, row 44. |
||
|
sheet |
|
|
|---|---|---|
|
Required |
Value type |
EL-evaluated |
|
Yes |
String |
Yes |
|
Defines the sheet where the target cell is in. The resolved String is expthected to be a name of a sheet in the workbook. |
||
|
value |
|
|
|---|---|---|
|
Required |
Value type |
EL-evaluated |
|
Yes |
Any |
Yes |
|
Defines the new value of the cell. If the resolved value is a Number or a Boolean, the cell's type is set to numeric or boolean, as appropriate. If the value is an empty String, the cell's value is set to null. If it's a value of any other type, that value is converted into a String, and the cell type is set to text. |
||
Examples
Add one setCellValue command for every cell whose value you wish to modify.

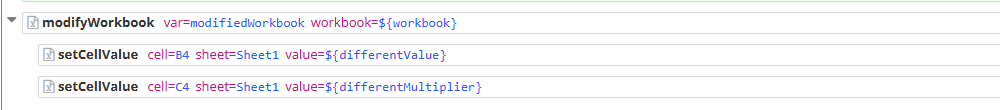

<modifyWorkbook var="modifiedWorkbook" workbook="${workbook}"> <setCellValue cell="B4" sheet="Sheet1" value="${differentValue}"> <setCellValue cell="C4" sheet="Sheet1" value="${differentMultiplier}">
If you're setting fixed values into cells, be particularly careful when setting numbers. A number that is not wrapped with the EL-expression notation is actually a String, and String values do not function as the numbers they may look like when they are components of formula cells' calculations. So, if you'd like to set a cell's value as the number 22 for example, set the value attribute into ${22}, not 22.
