How to keep text from previous version (Legacy)

Update from 2018/01 release:

This instruction is for templates created before the 2018/01 release. For those templates created after the 2018/01 release, this function is automatically included when the Editable Content is activated. Template designers can skip these steps.

Restoring users' edited text from previous version and match them to the newly created document is an enhanced function of Documill Dynamo's version control, which allow users to:

Continue working on the draft document in their convenient time
Retain their customized text when creating a new document with updated Salesforce data

Content includes:

Requirement

Add logic to load previous content document in the beginning of the process
- Add path to the document
- Query the previous content document
- Load the previous content document if there is
- Restore edited text from previous version
Create logic to save the edited text
Edit logic when saving final PDF document

Requirement

The functionality can be achieved only with Advanced Template.
The saving option of the template is: Save new document as a new version of the existing file
Delete the PDF documents created in the test record before adding the new logic
There is at least an editable group or an editable span in the template.
Editable Content in Settings is Basic Editing or Advanced Editing

1. Add logic to load previous content document in the beginning of the process

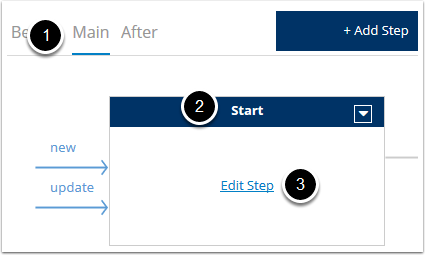

Click the Main module to open the template's logic

In Main tab, at the first step Start, select Edit Step

1.1. Add path to the document

In Filter box on the right pane, search for set

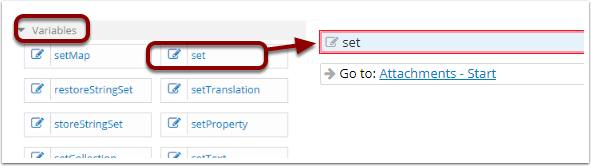

Drag and drop the set tag in Variables library to the workspace in the middle, before the Go to tag

Select the added set tag. In the set attributes on the left pane, add:

CODE

var: filePathvalue: dynamo/doc.pdf

1.2. Query the previous content document

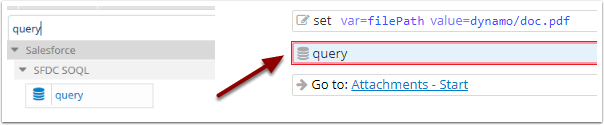

Similar, add a query tag from SFDC SOQL library after the set tag

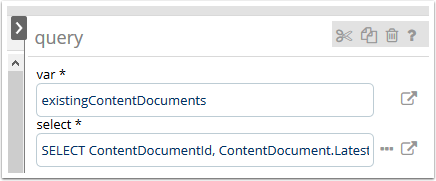

In the query attributes, give the following values:

CODE

var: existingContentDocumentsselect: SELECT ContentDocumentId, ContentDocument.LatestPublishedVersion.Id FROM ContentDocumentLink WHERE LinkedEntityId = '${id}' AND ContentDocument.LatestPublishedVersion.PathOnClient ='${filePath}' LIMIT 1

1.3. Load the previous content document if there is

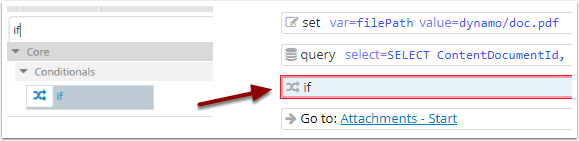

Under the query tag, add an if tag from Conditionals library

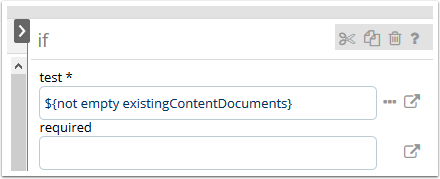

In if attributes, give the test value:

CODE

test: ${not empty existingContentDocuments}

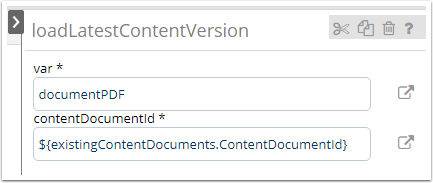

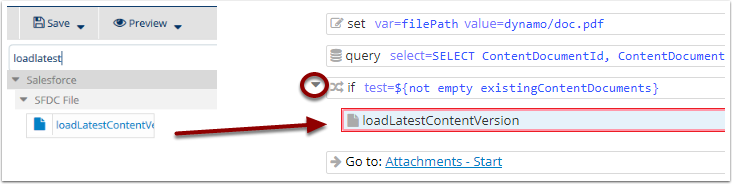

Add loadLatestContentVersion tag from SFDC File library as a child tag of if

In loadLatestContentVersion attributes, give the values:

CODE

var: documentPDFcontentDocumentId: ${existingContentDocuments.ContentDocumentId}

1.4. Restore edited text from previous version

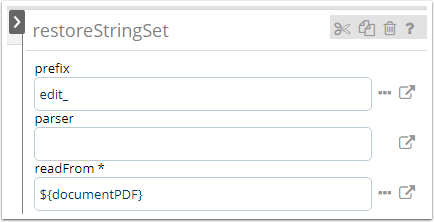

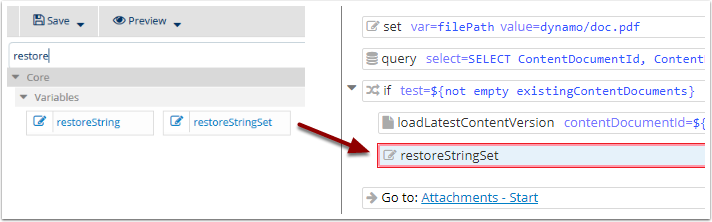

Add restroreStringSet from Variables library as another child tag of if

In restoreStringSet attributes, give the values:

CODE

prefix: edit_readFrom*: ${documentPDF}

2. Create logic to save the edited text

Click Main in the title to go back to the template's logic

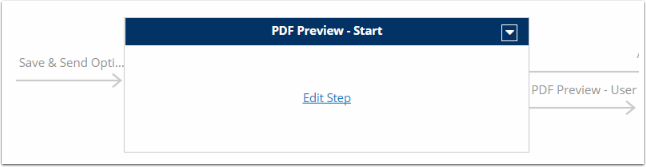

Click Edit Step to open logic in "Preview PDF - Start"

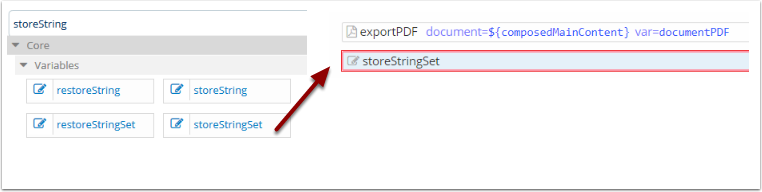

Add the storeStringSet tag from Variables library to the workspace in the middle, after the exportPDF tag

In storeStringSet attributes, give the values:

CODE

prefix: edit_storeTo: ${documentPDF}

3. Edit logic when saving final PDF document

Click Main in the title to go back to the template's logic

If you use the Auto Save function, click Edit Step to open the logic of the "Auto-Save" step

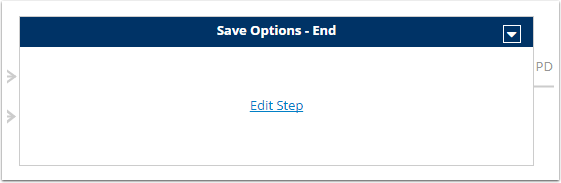

If you use the Manual Save function, click Edit Step to open the logic of the "Save Options - End" step

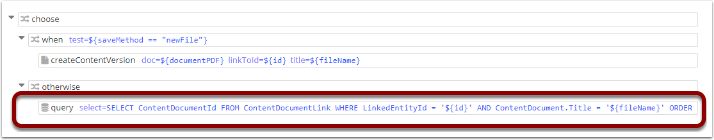

In the logic, select the query tag

Change the select value of the query attributes to

CODE

SELECT ContentDocumentId, ContentDocument.LatestPublishedVersion.Id FROM ContentDocumentLink WHERE LinkedEntityId = '${id}' AND ContentDocument.LatestPublishedVersion.PathOnClient ='${filePath}' LIMIT 1

In the choose tag below the query, edit the value of the 2 createContentVersion tags

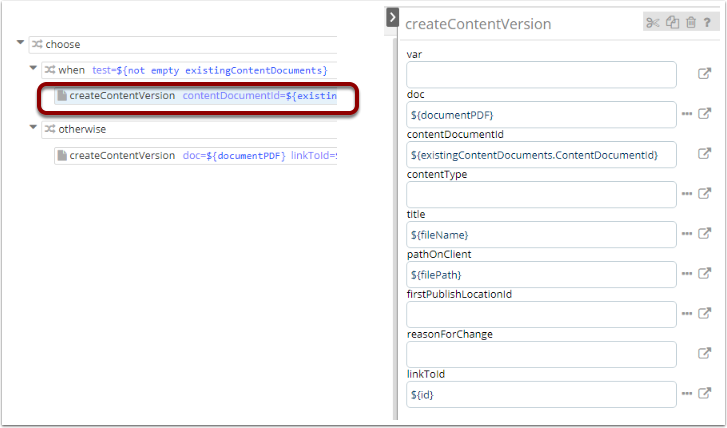

In the 1st createContentVersion, after the when tag, give the value for the attributes:

CODE

doc: ${documentPDF}contentDocumentId: ${existingContentDocuments.ContentDocumentId}title: ${fileName}pathOnClient: ${filePath}linkToId: ${id}

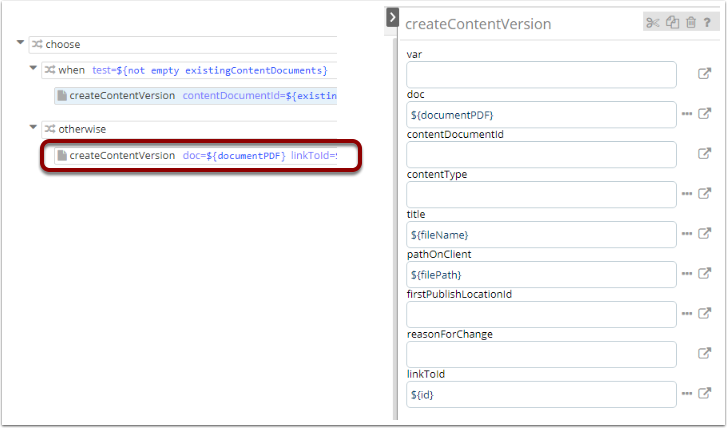

In the 2nd createContentVersion, after the otherwise tag, give the value for the attributes:

CODE

doc: ${documentPDF}title: ${fileName}pathOnClient: ${filePath}linkToId: ${id}

Test and save the template
