start

Directs the evaluation process to the beginning of one of the Flow's Segments. This command interrupts the evaluation of the current Step and Segment, causing any following commands within the Step to not be evaluated.

Attributes

segment

Required

Value type

EL-evaluated

Yes

String

Yes

Defines the Segment whose evaluation is to start. The resolved value of this attribute should be the ID of a Segment or one of the five constant values described below, defining the Segment into which the evaluation process heads to.

These six values point into Segments dependent on the structure of the Flow and the Segment this command is in:

:first - The first Segment of the Flow. An error is produced if this value is used within the Flow's first Segment.
:last - The last Segment of the Flow. An error is produced if this value is used within the Flow's last Segment.
:next - The Segment following the Segment this command is in. An error is produced if this value is used within the Flow's last Segment.
:previous - The Segment preceding the Segment this command is in. An error is produced if this value is used within the Flow's first Segment.
:return - The previously evaluated Segment. An error is produced if this value is used within the Flow's first Segment.
:this - The Segment this command is in. In other words, this value restarts the current Segment.

If the resolved value is not one of those five, it is interpreted as the ID of a Segment.

Examples

The start command allows the evaluation process to proceed through the Segments in a non-linear manner. Unlike its cousin command next, start is not essential in the Flow, as the evaluation process will move from Segment to another by itself.

Either use the ID of a Segment directly, or one of the constant values - the following would direct the evaluation process back to the start of the Flow regardless of Segment IDs:

CODE

<if test="${backToStart}">
        <start segment=":first">

When doing something like the above, directing the evaluation process "backwards", just be sure that the condition or something else is preventing the start from being evaluated again with the same resolved value - otherwise the evaluation process will end up in an infinite loop. Something like this would prevent the loop from occurring:

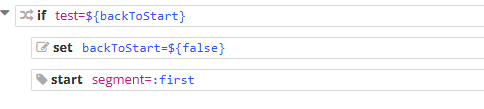

CODE

<if test="${backToStart}">
        <set var="backToStart" value="${false}">
        <start segment=":first">

One of the tools to prevent infinite loops, and a good companion command of start in general, is setEvent, as it can change the starting Steps of Segments. This, for example, allows previously evaluated Segments to be evaluated again but go through different Steps.

CODE

<setEvent eventID="secondRun">
      <start segment=":previous">
